#A Pi ACE extension: playbook injection

the last post was about augmenting the tui with an extension. this one looks at modifying the agent behavior.

(1 of N): scope here is the playbook-injection half. reflection and curation are the hard parts and earn their own posts.

What I want to learn

• explain the ACE memory system:
  • the value it delivers and the algorithm that gets you there
  • the architectural components
  • the lifecycle, including which hooks an integration would need

Approach

• read the ACE python implementation. pull out:
  • architectural components
  • lifecycle(s)
  • side-effects, data, and functions

What I found

ACE in one paragraph

ACE stands for Agent Curator Environment system. it's a framework for evolving and improving agentic behavior. rough sketch: your agent gets the right domain-specific instructions and tips for the task at hand. that context is continually groomed (allowed to grow) and then distilled into a clearer, more focused version that uses less context budget. claimed gains: +10.6% on agent tasks and +8.6% on domain-specific benchmarks.

the artifact at the center is the playbook. format is easy to grok: bullets organized into categories, each with an identifier and helpfulness/harmfulness counters.

# strategies & insights
[str-0001] helpful=5 harmful=0 :: Always verify data types before processing

the architecture has three roles:

• GENERATOR: produces reasoning trajectories. roughly: tightly-scoped context specific to the task at hand.
• REFLECTOR: evaluation and insight generation. reviews what took place and extracts lessons.
• CURATOR: converts the lessons into normalized form and applies delta updates to the playbook.

to make GENERATOR concrete, here's its prompt structure (truncated):

You are an analysis expert tasked with answering questions using your knowledge, a curated playbook of strategies and insights and a reflection that goes over the diagnosis of all previous mistakes made while answering the question.

...

Your output should be a json object, which contains the following fields:
- reasoning: your chain of thought / reasoning / thinking process, detailed analysis and calculations
- bullet_ids: each line in the playbook has a bullet_id. all bulletpoints in the playbook that's relevant, helpful for you to answer this question, you should include their bullet_id in this list
- final_answer: your concise final answer

...

**Answer in this exact JSON format:**
{{
  "reasoning": "...",
  "bullet_ids": ["calc-00001", "fin-00002"],
  "final_answer": "..."
}}

inputs: question, playbook, context (optional), reflection (optional). outputs: response, plus the set of bullet ids the generator deemed useful.

Mapping ACE onto Pi sessions

a pi session has a natural shape that lines up with ACE's GENERATOR phase. each agent turn has a beginning, inputs, and a result. roughly:

• session start (or user input, or maybe a tool-call return for tool-refining cases): annotate generation phase started, inject the playbook.
• agent response: annotate generation phase ended.

the produced artifact (the session, including the annotations) feeds reflection later. and a bunch of useful context comes for free: the user's prior turns, the model and provider, other session config. all already in the session.

so: first thing to build is the playbook-injection half. defer everything else.

First extension: playbook injection

the simplest viable thing: read a playbook.md from the cwd, append it to the system prompt for each agent turn.

const createStartCtx = (params: {
  playbook?: string;
  systemPrompt: string;
}): { systemPrompt: string } | undefined => {
  if (!params.playbook) {
    return undefined;
  }

  return {
    systemPrompt: `${params.systemPrompt}

${params.playbook}`,
  };
};

export default function (pi: ExtensionAPI) {
  let ace: Ace | undefined;

  pi.on('session_start', (_event, ctx) => {
    // find/read or create playbook
    ace = createAce(pi);
    logAce(pi, ace);
  });

  pi.on('before_agent_start', (event, ctx) => {
    return createStartCtx({
      playbook: ace?.playbook,
      systemPrompt: ctx.getSystemPrompt(),
    });
  });
}

initialize global state on session_start, read the playbook if it exists in the cwd, append it to the per-turn system prompt via before_agent_start.

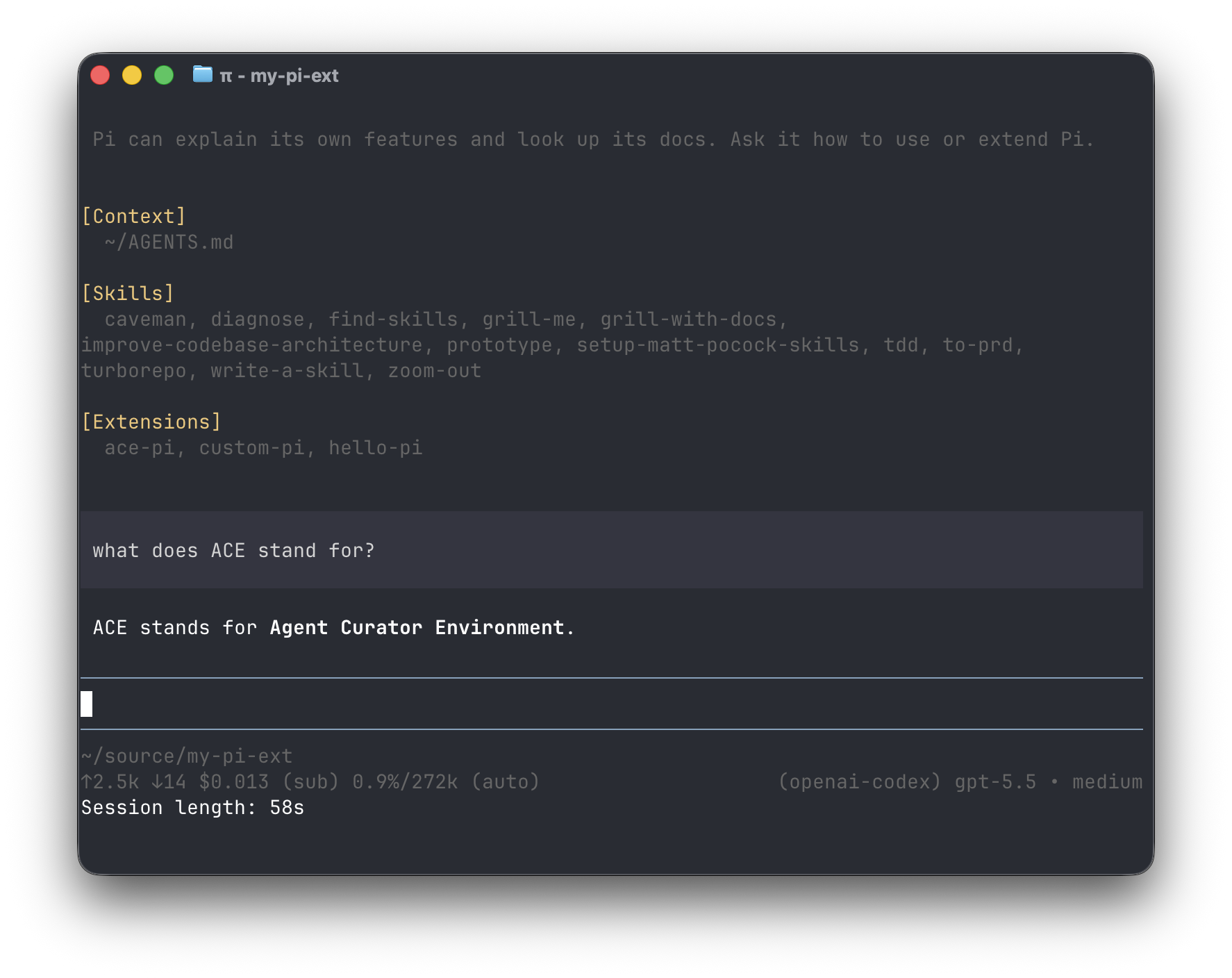

the playbook.md in the working dir for the test was empty:

# ACE (Agent Curator Environment) Playbook

// TODO: fill this out

yes, empty. however:

What's next

i'm now an expert on the ACE system. (not really.) what is true: deterministic playbook injection works. what's been punted on is the actually-hard stuff.

• reflection on the session. distilling what happened into insights worth keeping.
• training over sessions. treating a session as input to an evaluation function with the playbook varied. this one's tricky and will take some thinking.

one of the two is the next post.
